Tutorial 2 - Simulate SPR curves with WinSpall

Getting thicker: 300 nm

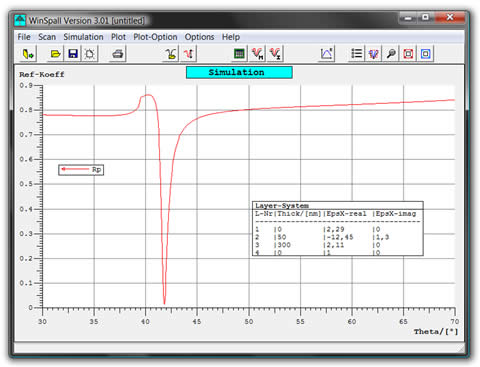

Even thicker: 300 nm and we find something new. A very sharp dip in the reflectivity curve but at a smaller angle. This is not a plasmon, this is a waveguide mode. The first waveguide for this layer system.

There are more to come as the layer gets thicker ...
