Tutorial 1: Features of reflectivity curves
Tutorial 2: WinSpall SPR simulation software.
Also have a look at our theory section.
Tutorial 2 - Simulate SPR curves with WinSpall
Out of the air and into the water

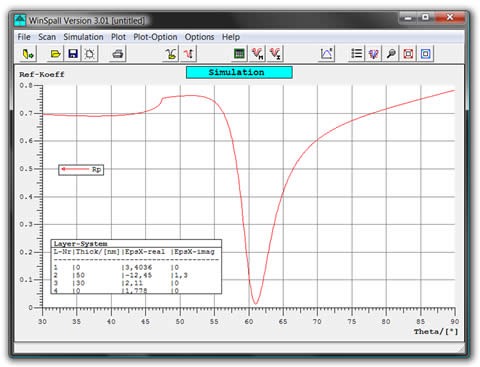

Our last topic in this tutorial deals with a measurement of a layer against water. Water has a rather high refractive index as compared to air and it is the difference between this quantity and the refractive index of the prism that determines the angular range available.
It is necessary to use a high refractive index glass prism and this is accounted for in our table: e'=3,4 for the glass and still the edge of total reflection of our system shifts to about 47° and the resonance minimum of a 30 nm thick layer is found at an angle higher than 60°.
Download:
Res Tec Tutorial 2 - Simulate SPR curves with WinSpall (pdf)
