Tutorial 2 - Simulate SPR curves with WinSpall

Total reflection at a glass-air-interface

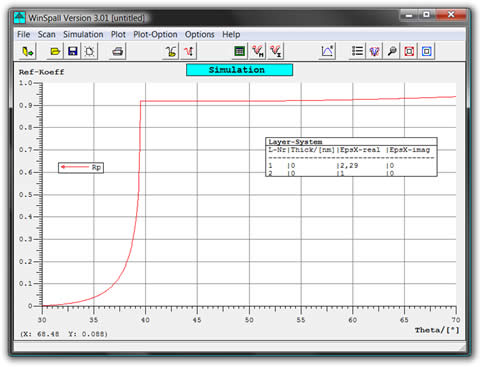

Here is what we get: A typcial curve describing total internal reflection: Light is reflected from an interface separating high index from low index material: at low angles basically all light passes through the interface without any reflection. Just below about 39° more and more light is reflected until total internal reflection is reached.
